Products EV Charging Station Products AC EV Charging Station

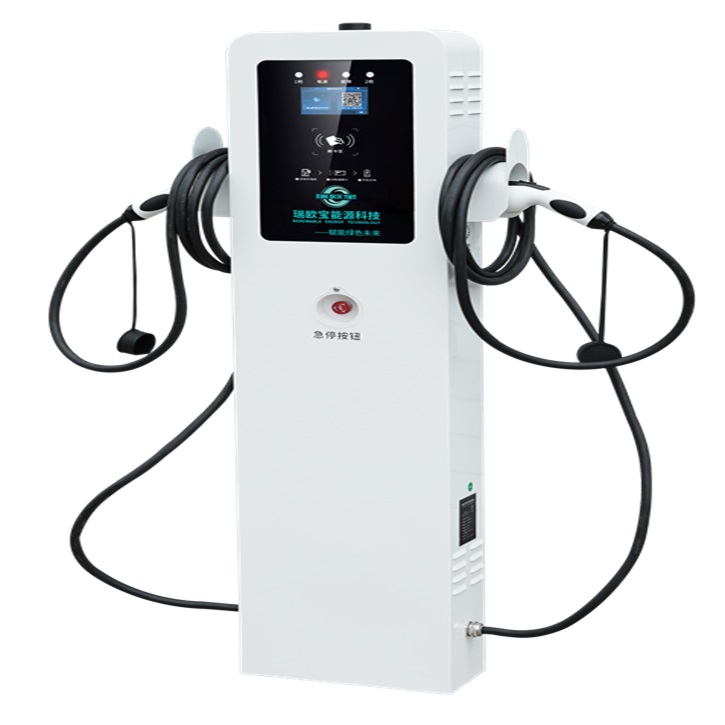

AC EV Charging Station
Efficient charging
Using original imported control chips, the system runs stably and efficiently The output power is automatically adjusted with the vehicle and is suitable for use with various new energy vehicle models
Safe and reliable
It has multiple protection mechanisms such as emergency stop, overvoltage,overcurrent and abnormal temperature IP54 protection level, can be placed in the outdoor open air environment Real-time monitoring of the equipment operation status, intelligent control of current., fault earlywarning
Parameters
Type ROBAC7K-H ROBAC14K-H
Rated Power 7kW 14kW
Input Voltage Range AC220V士20% AC220V士20%
Output Current 32A 2*32A
Output Voltage AC220V士20% AC220V士20%
Number of Guns
Single-gun
Double gun
Design Standard GB/T18487-2015
Input Frequency 50士1HZ
Man-machine Interface
4.3Inch color LCD screen+LED
Network Method Ethernet, 4G, Bluetooth, WiFi
Charging Mode
Automatic charging, Timing and other strategy charging
Cloud Platform
Support cloud fast charging、Ultimate cloud、Rui Xiang cloud、Darker cloud, E charge
Starting Method
Small program or Scan code, By Wechat
Protection Function
Short circuit, overcurrent, over temperature, leakage, overvoltage, ETC
IP Level IP54
Operation Temperature -20℃~+50℃
Length of Charging Gun Line
5 Meters（Standard Configuration）
Direction of Input Line
Down and Down
Dimensions 330*1450*160mm(W*H*D)
Type ROBAC21K-H
Rated Power 21kW
Input Voltage Range AC380V士20%
Output Current 3*32A
Output Voltage AC380V士20%
Number of Guns
Single-gun
Design Standard GB/T18487-2015
Input Frequency 50士1HZ
Man-machine Interface
4.3Inch color LCD screen+LED
Network Method Ethernet, 4G, Bluetooth, WiFi
Charging Mode
Automatic charging, timing and other strategy charging
Cloud Platform
Support cloud fast charging、Ultimate cloud、Rui Xiang cloud、Darker cloud, E charge
Starting Method
Small program or Scan code, By WeChat
Protection Function
Short circuit, overcurrent, over temperature, leakage, overvoltage, ETC
IP Level IP54
Operation Temperature -20℃~+50℃
Length of Charging Gun Line
5 Meters（Standard Configuration）
Direction of Input Line
Down and Down
Dimensions 330*1450*160mm(W*H*D)
